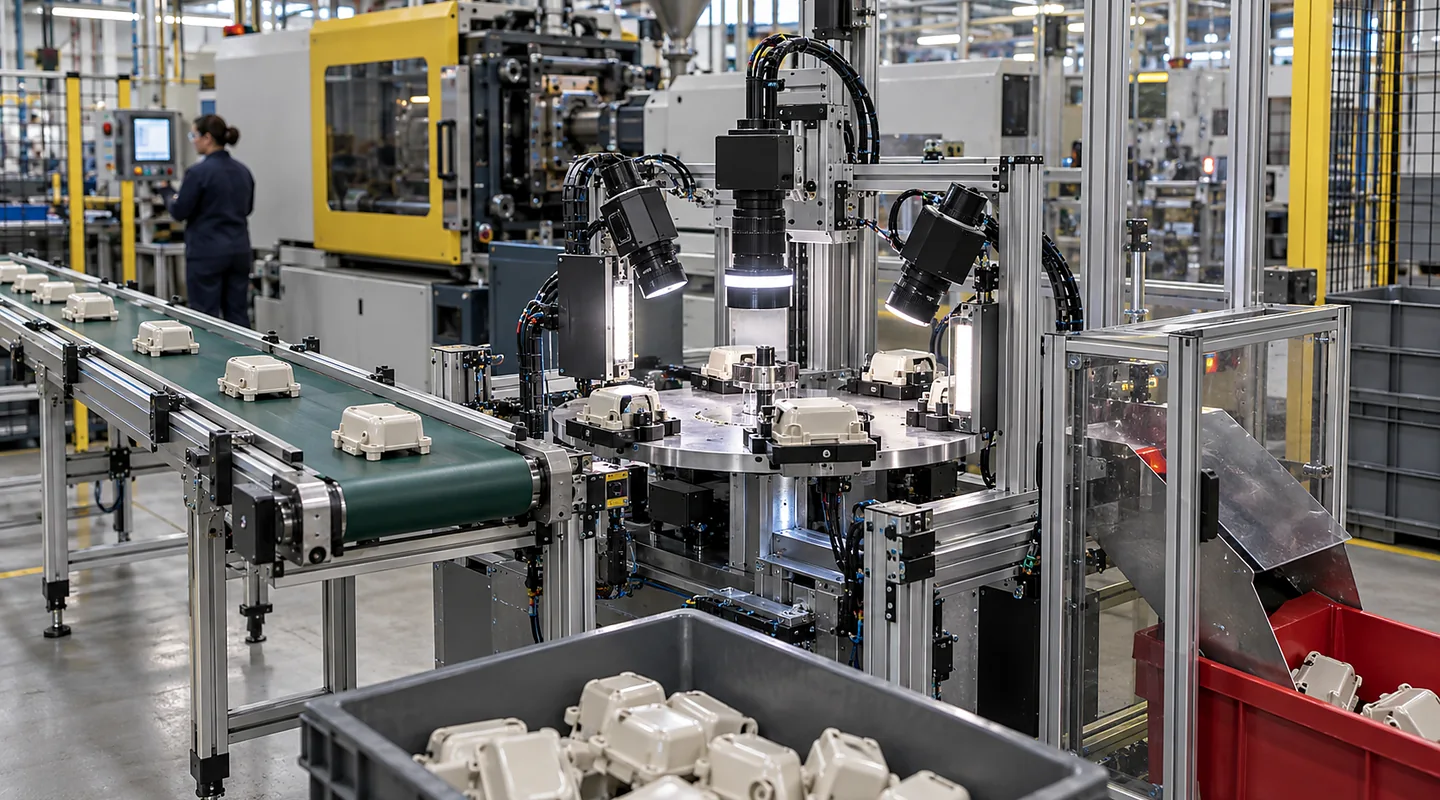

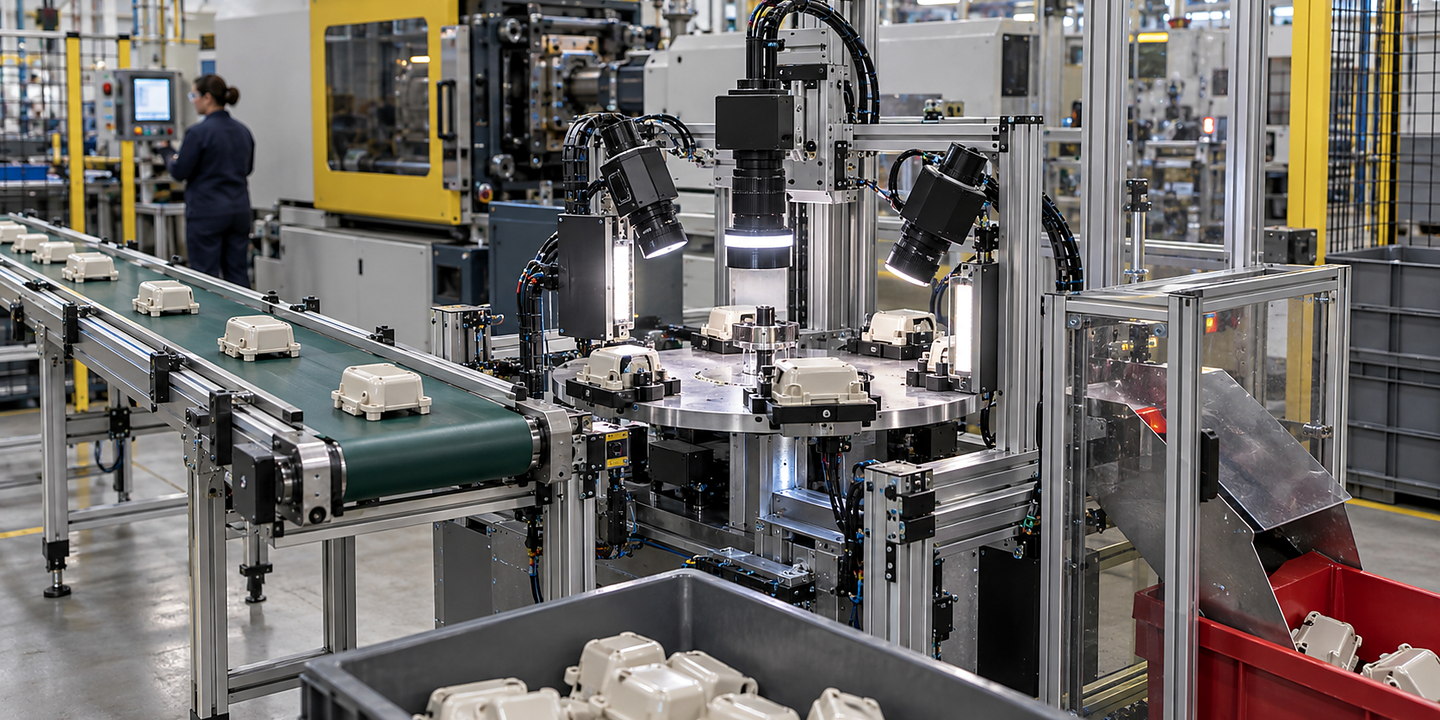

Cameras and lighting above light-coloured components on a rotary fixture and conveyor.
Industrial machine vision

Textile Inspection Cameras for Fabric and Pattern Checks

Plan textile surface and pattern inspection around representative good, bad and marginal samples, line presentation, lighting, reject handling and challenge criteria. Discuss an optical feasibility trial with Oxford Vision Systems.

Speak directly with Oxford Vision Systems about textile surface and pattern inspection.

Quick answer

How can machine vision distinguish textile defects from normal variation?

Define the fabric constructions, colours and defect examples, including the smallest unacceptable condition. Supply good material showing normal texture and pattern variation. Trial lighting, tension and presentation at representative speed, and agree how defect position, severity and uncertain results will be recorded for the downstream process.

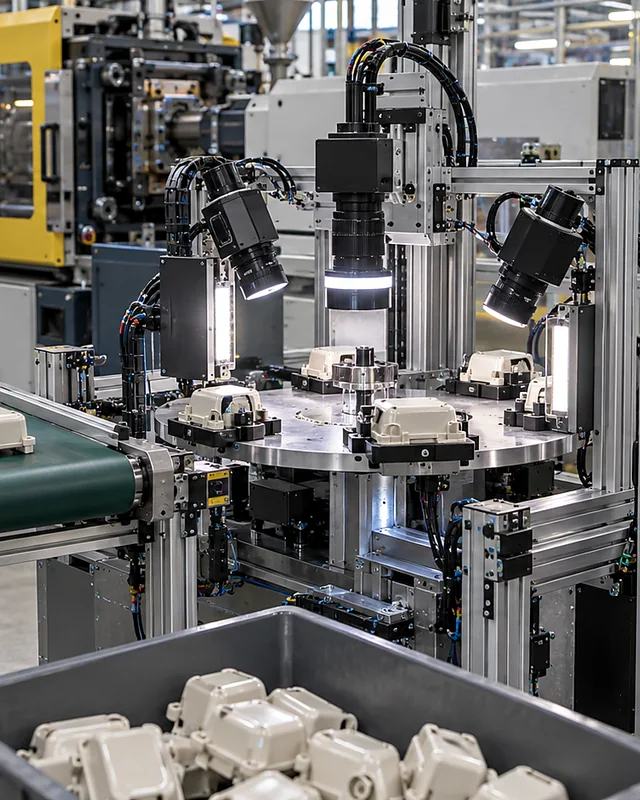

Cameras and lighting above light-coloured components on a rotary fixture and conveyor.

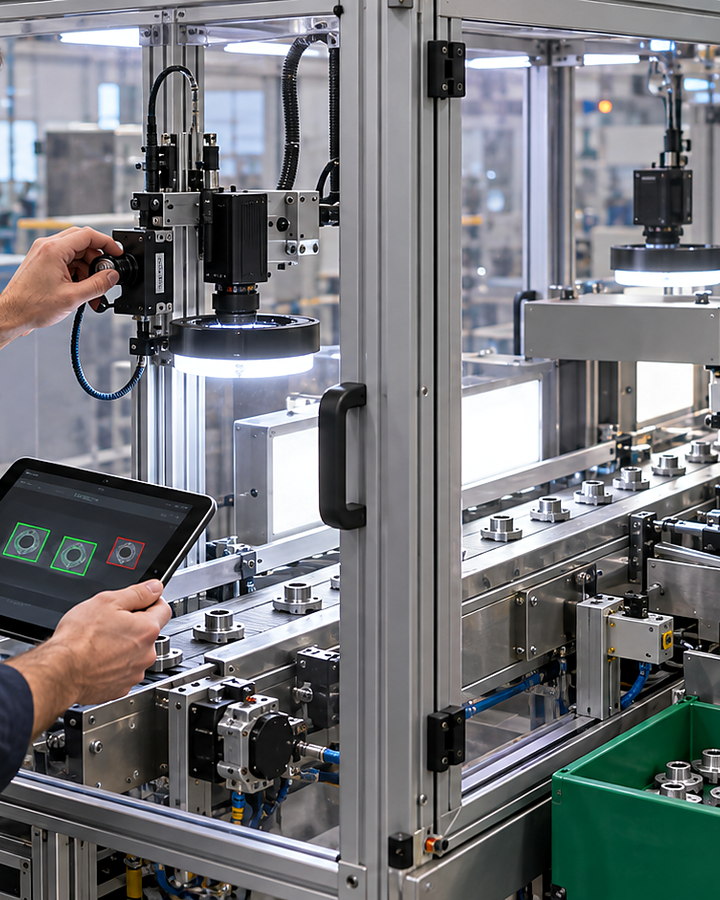

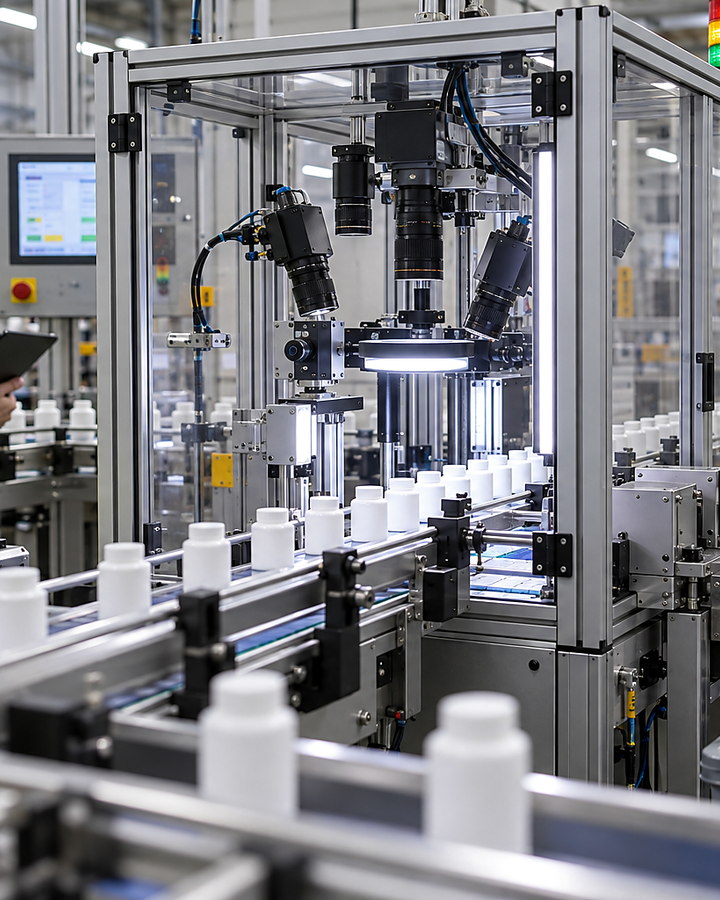

An engineer adjusting camera and lighting hardware on an in-line inspection station.
Application decisions

Separate textile defects from normal fabric appearance

A useful textile camera trial represents the fabric that should pass as carefully as the defects that should fail.

Decision 1

Define the fabric range

List constructions, colours, widths and patterns. Retain good samples spanning normal batches, texture and appearance so a new acceptable fabric is not automatically treated as a fault.

Decision 2

Label visible defect examples

Mark the defect location and explain the rejection reason. Include marginal examples and the smallest unacceptable condition agreed by the production or quality team.

Decision 3

Show the actual presentation

Record whether inspection is on a moving web, a cut piece or another form. Include folds, tension changes, edge movement and the accessible viewing area expected in production.

Decision 4

Evaluate lighting on the textile

Compare images of the same good and defective samples with the proposed arrangement. Reflective fibres, texture and pattern can change the appearance, so the trial must establish repeatable visibility.

Decision 5

Define how faults are located

Specify the roll or piece identifier and the position information required by the next process. Agree how a detected location is associated with material after stops, movement or cutting.

Decision 6

Manage the action after detection

Choose a defined alert, marking, hold or rejection response appropriate to the process. Include uncertain results and repeated faults so operators know which material needs review.

Applications

Two useful starting points for textile surface and pattern inspection

The right choice changes with visible defect or measurement definition for textile surface & pattern inspection, good, bad and marginal sample range, your line layout and required results.

Production review

Report textile inspection performance by defect and fabric

  1. 01

    Keep different fabric conditions visible

    Do not combine all samples into one unexplained success figure. Record the fabric reference, defect category, presentation and result so weak coverage remains apparent.

  2. 02

    Challenge acceptable variation

    Evaluate good fabric with the normal texture and pattern changes expected in production. Review rejected good material separately from missed defects when deciding whether the proposed method is useful.

  3. 03

    Prepare a feasibility set

    Send labelled good, bad and borderline samples, a description of line presentation and the required action. Identify any property that needs a separate physical or functional test.

Use the textile inspection cameras specification checklist to prepare the application, then agree the acceptance checks and production records before comparing proposals.

Practical decision guide

Make a fabric defect location recoverable after cutting or rewinding

Finding a defect is useful only if the next process can identify the affected material. Agree the roll or piece identifier and the coordinate reference before comparing a camera’s location display with a downstream cutting decision.

State where zero starts and what advances the count

Record the physical reference for the length coordinate and the width datum. Define how a new roll, a join and a restarted job are identified. If material movement is measured separately from the camera, assess their association through the normal speed range and stopping sequence.

Record removed sections rather than silently shifting locations

Suppose a purely illustrative roll record marks a defect at 120 m from the original leading edge. Removing 20 m earlier in the roll changes its position relative to the new leading edge, but not its original coordinate. Keep the removal record or create an explicitly revised coordinate system so the downstream operator knows which reference the number uses.

Challenge rewinding and reverse movement

Follow a physically marked sample through the intended material route. Include a stop, a direction change where the process permits it and a roll change. Confirm the same finding can be recovered on the material, rather than relying only on a plausible screen position.

Give downstream users a usable decision record

Pair location with roll identity, defect class, affected span and the agreed hold or cutting instruction. Keep uncertain location separate from a precise mark. Record the required interface in the textile inspection checklist and prove it alongside the optical acceptance tests.

Important limits

Know what needs a separate check

Your final solution for textile surface and pattern inspection must reflect the law, current standards and site-specific risks that apply to your installation.
